Data preparation

geossm’s models consume data as design matrices organized on a site x time grid: an array of shape [N, P, T] for the covariates and [N, T] for the response, where N is the number of spatial sites, P the number of covariates, and T the number of timesteps. geossm.data_preparation builds this grid from a geopandas.GeoDataFrame in long format (one row per site/timestamp observation) and a Patsy/R-style model formula.

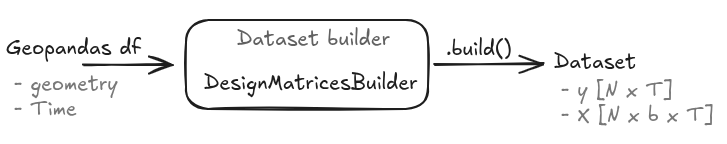

From a GeoDataFrame to a site x time design matrix

The workflow

  1. Start from a geopandas.GeoDataFrame with a geometry column (one geometry per site) and a time column (named "Time", or the first datetime64 column found).

  2. Create a DesignMatricesBuilder with the GeoDataFrame and a formula, e.g. "AQ_pm10 ~ 1 + WE_temp_2m". The constructor validates the input (CRS/geometry, time column, regular time spacing, formula columns) and optionally restricts the data to a time window (tmin/tmax) or spatial domain.

  3. Call build() to obtain a DesignMatrices instance.

from geossm.data_preparation import DesignMatricesBuilder

builder = DesignMatricesBuilder(agri, "AQ_pm10 ~ 1 + WE_temp_2m")
dm = builder.build()
print(dm.summary())

The formula’s left-hand side names the response column (omit it, e.g. "~ 1 + WE_temp_2m", to build covariates only); the right-hand side lists covariates, including Patsy transformations such as np.sqrt(...), I(...) or standardize(...). Missing response values are kept as NaN (not dropped), so the site x time grid stays rectangular – this is what lets the state-space models below treat irregular reporting as ordinary missing data in the Kalman filter.

Predicting at new locations/times

Once a builder has been used to build() a training set, the same builder can construct design matrices for new data with build_predict(), reusing the training formula’s fitted state (e.g. standardize(...) statistics) so covariates are transformed consistently between training and prediction.

Where this fits in

LRStateSpaceModel (see Low-rank state-space models) uses DesignMatricesBuilder internally – one builder per formula, when several response variables/domains are modeled jointly – so most users building an LRStateSpaceModel will not call it directly. It is most useful on its own for inspecting/validating a dataset before modeling, or when only the covariate-construction logic (formula parsing, time grid) is needed, e.g. for an OLS baseline (see examples/example_DesignMatrix_OLS.py).
